| Tipo de conector: | Conector circular de batería de motocicleta eléctrica | Género: | Masculino / Femenino (Disponible) |
|---|---|---|---|
| Configuración de pines: | 3 alimentación + 1 PE (4 pines) | Fuerza del retiro: | ≤ 10,4N |
| Tipo de enganche: | Acoplamiento de tornillo roscado | Material de la carcasa: | Ingeniería de plástico |
| Material de contacto: | Cobre dorado | Mecanismo de bloqueo: | Codificación roscada + polarizada |
| Aplicaciones: | Industrial, Solar, Carga de vehículos eléctricos, Exterior |

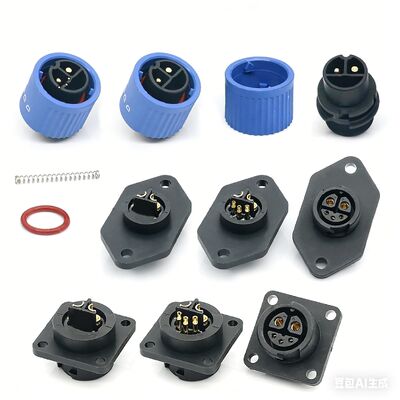

M19 Series 20A 10.4N Ultra Low Insertion Force Waterproof Power Connector Free Test Supported
Product Definition
The M19 Series Power Connector is a robust, circular waterproof power connector designed for reliable power transmission in demanding environments. Available in male (plug) and female (socket) versions, it features a 3-pin + PE (protective earth) configuration, supporting up to 300V DC / 20A. With an IP-rated sealed design, threaded coupling, and high-grade materials, the M19 series delivers excellent waterproof, dustproof, and corrosion-resistant performance for industrial and outdoor applications.
Key Features
M19 Series Power Connector Table
| Parameter | Specification |
| Rated Voltage | DC 300V |
| Rated Current | 20A |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Withstand Voltage | AC 2000V (50Hz) / 1 min |
| Insertion Force | 10.40 N |
| Durability | ≥ 3000 mating cycles |
| Operating Temperature | -25°C ~ +70°C |
| Relative Humidity | 90% (40°C) |
| Salt Spray Test | 72 hours |
| Pin Configuration | 3 Power + PE (4 pins total) |
| Coupling | Threaded screw coupling |
| Housing Material | High-performance engineering plastic + metal options |
| Contact Material | Gold-plated copper |
Application Scenarios
Frequently Asked Questions (FAQ)
Q1: What is the M19 Series Power Connector?
A: The M19 Series is a heavy-duty, circular waterproof power connector designed for reliable power transmission in harsh environments. It features a 3-pin + PE (Protective Earth) configuration, supporting up to 300V DC / 20A, with threaded coupling for secure, vibration-resistant connections.
Q2: What is the waterproof and dustproof rating?
A: When properly mated, the M19 series achieves IP67/IP68 level protection (waterproof and dustproof). It has passed strict environmental tests including 72-hour salt spray testing.
Q3: What is the maximum voltage and current rating?
A: Rated voltage is DC 300V, and rated current is 20A. It is ideal for medium-power applications.
